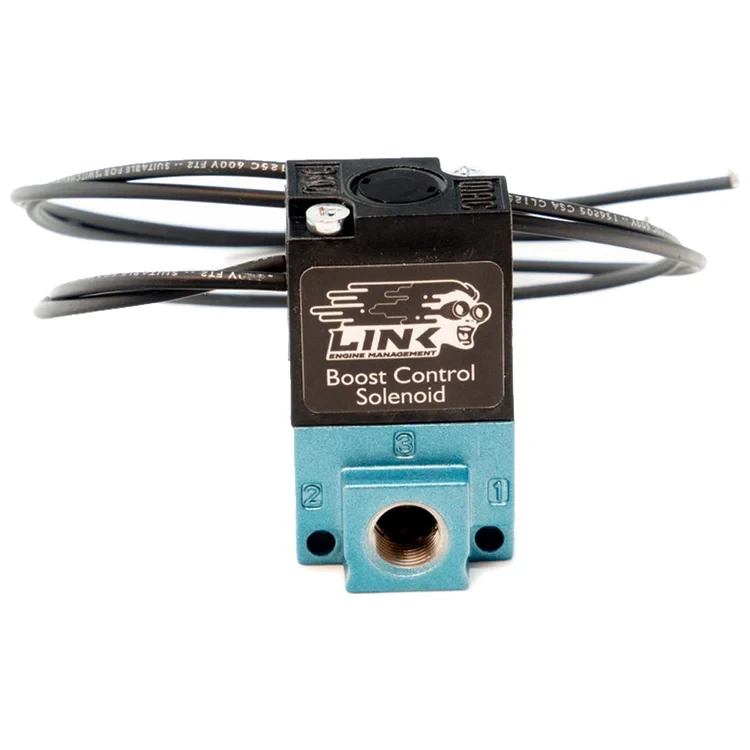

Link Boost Control Solenoid 3 Port

Need more boost then this 3 port boost control solenoid will help you do it.

3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate.

For higher boost applications consider our 4-Port boost control solenoid.

Features

Compatible with all Link ECU’s
Can be used with single or multiple wastegates (Using T junction)
Compatible with internal or external wastegates
Fast and consistent response times
High shifting forces
MAC 35 series – Rugged, reliable and long operational life
Short stroke, high flow
Balanced poppet, immune to variations of pressure

We recommend starting with a PWM frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in the PC Link software which is available in the download tab.
